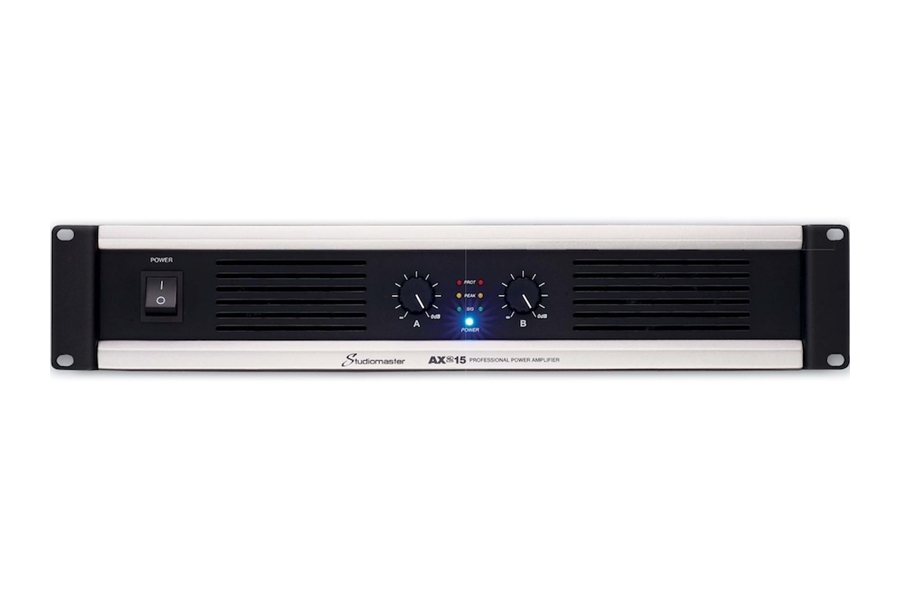

Studiomaster AX215 Amplificador
Amplificador com 2x270w @ 8Ohm, 2x450w@4Ohm, 2x575w @2Ohms, com crossover de 2 vias flexível, filtro passa-altas frequências, 2 ventoinhas de refrigeração de velocidade variável, chassis totalmente ventilado de alta resistência, 16kg.
Input Sensitivity: rated power 4ohm0dBu 0.775V
Distortion THD: 1kHz @ rated power 0.01-0.02%
Frequency Response: 20Hz – 20kHz (+0/-0.5dB)
Signal to Noise Ratio: rated power 4ohm 100dB unweighted
Input Filter: 3rd order 18dB/oct 35Hz
Crossover: selectable 100/150Hz 3rd order filter
Cooling: Twin variable speed fans, back to front airflow
Protection: Full short circuit, open circuit, thermal, ultrasonic and RF protection
Power Requirements: 230V +/-10% 50/60Hz

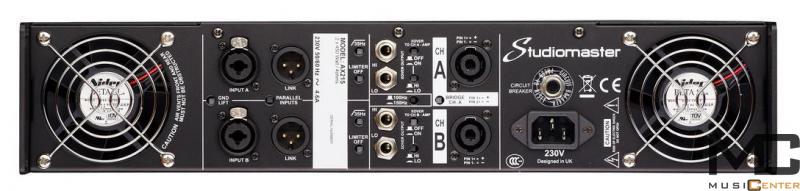

Input Connections: Combination XLR and Jack, Male XLR link socket
output Connections: 4 pole industry standard sockets
Both Channel @ 8ohms RMS: 270watts
Both Channel @ 4ohms RMS: 450watts
Both Channel @ 2ohms RMS: 575watts
Bridged @ 8ohms RMS: 900watts
Bridged @ 4ohms RMS: 1150watts
Output Circuit: AB
Power Consuption @230V 1/power: 4.6A
Dimensions: 482mm x 89mm x 394mm
Weight (net/shipping): 16kg / 20kg
