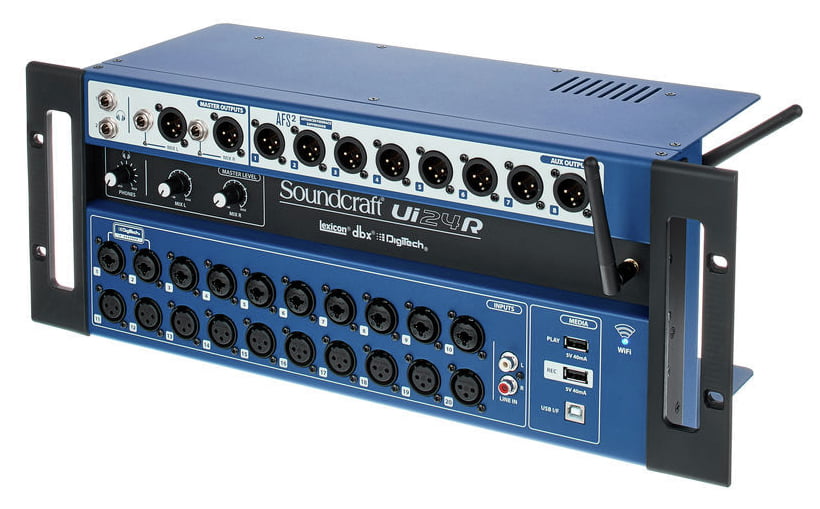

Soundcraft Ui24R
34306
Mesa digital controlada por tablet, pc ou smartphone, stagebox integrada, 20 inputs mic/line, 10XLR e 10 combi, 2 RCA, USB media player, interface I/O USB 32 canais, 2 portas USB adicionais, 8 saídas XLR, DSP, Wifi, Ethernet, efeitos Lexicon, supressor de feedback dbx, modelação de amplificadores Digitech, analisador em tempo real de 120 bandas, equalização paramétrica de 4 vias por canal com delay, compressor, filtro passa-banda, noise gate, equalizador de 31 vias e compressor nas saídas, interface USB 2 canais, peso 5.1kg, formato 4u rack.
Simulação de adquisição do produto Soundcraft Ui24R
Informação detalhada
- Parallel multitrack recording to USB drive & DAW
- 20 Mic / Line inputs: 10x XLR, 10x 6.3 mm jack combo
- 2 RCA line inputs
- 2-Channel USB media player (MP3, WAV, AIFF playback)
- 22-Channel USB direct-to-memory recording
- 32-Channel recording interface (I/O via USB-B port)
- Internal sample rate: 48 kHz
- 2 Additional USB ports for controllers & updates
- 2 XLR & jack main outputs
- 8 XLR AUX outputs
- 2 Headphone outputs
- RJ45 Ethernet connector
- HDMI port for mixer control via a monitor
- Integrated dualband WLAN & Ethernet (2 antennas, 2.4 / 5 GHz)
- Compatible with iOS, Android, Windows, Mac OS, Linux (via HTML5)
- Accepts up to 10 devices simultaneously (tablet, smartphone, PC)
- Signal processing from dbx, Lexicon, Digitech
- 20 High-quality Studer designed mic preamps
- Input channels with 250 ms delay, 4-band parametric EQ, gate, compressor, de-esser, HPF
- 2 Channels include DigiTech amp / guitar modelling
- 8 AUX buses with 31-band graphic EQ, AFS2 Feedback Suppression, and dbx compressor
- 120-Band real-time analyser (inputs and outputs)
- 500 ms (approx. 170 m) of delay on the output busses
- 4 Lexicon effects busses (reverb, delay, chorus, room)
- Format: 19" / 4 U
- Depth: 16 cm
- Weight approx. 5.1 kg
