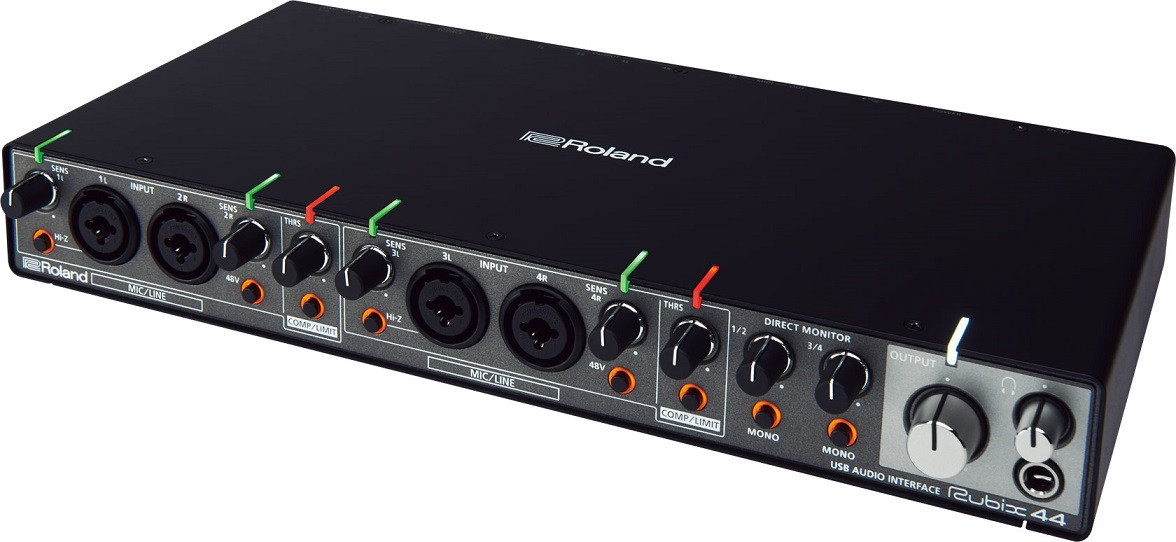

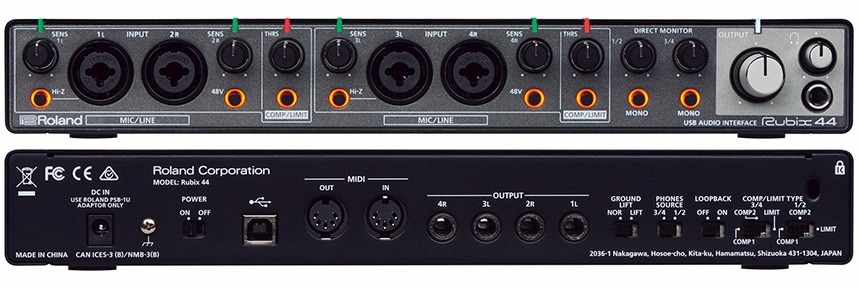

Roland Rubix44
Interface audio e midi USB 4in/4out resolução 24bit/192kHz, compatível com PC, MAC e Ipad, 2 entradas combi XLR/Jack balanceado, phantom power, 4 outputs jack balanceado, midi in/out, alimentação por USB.
SYSTEMNumber of Audio Record/Playback ChannelsRecord: 4 channels
Playback: 4 channelsSignal ProcessingPC interface: 24 bits
AD/DA conversion: 24 bitsSampling FrequencyAD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHzInterfaceHi-Speed USB

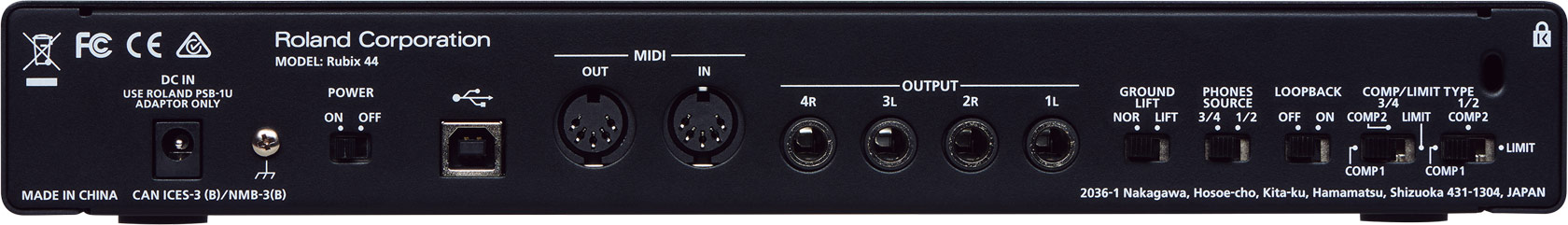

MIDI IN, OUTConnectorsINPUT (1L, 2R, 3L, 4R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R, 3L, 4R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R, 3L, 4R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC IN jack
*1 Current value per channel.

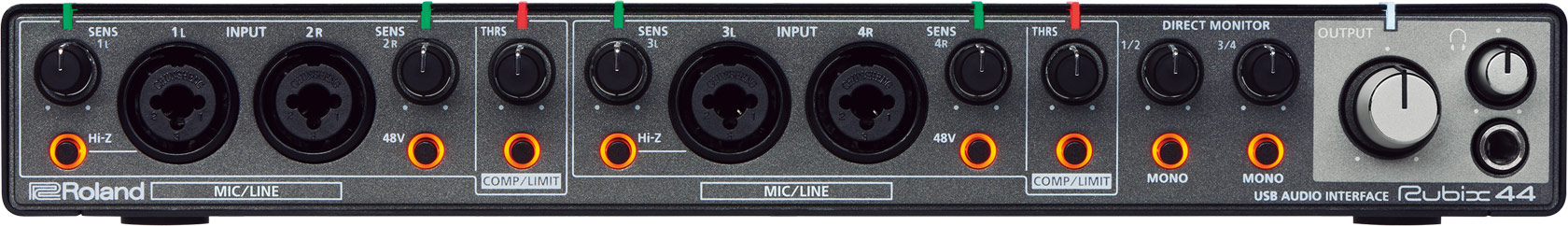

*2 INPUT 1L, 3L support high impedanceControllersSENS 1L, 2R, 3L, 4R knobs
Hi-Z switches
48V switches
THRS knobs
COMP/LIMIT switches
DIRECT MONITOR 1/2 knob
DIRECT MONITOR 3/4 knob
MONO switches
OUTPUT knob
PHONES knob
POWER switch
GROUND LIFT switch
PHONES SOURCE switch
LOOPBACK switch
COMP/LIMIT TYPE 1/2 switch
COMP/LIMIT TYPE 3/4 switchIndicatorLevel indicators (1L, 2R, 3L, 4R)
Level indicator (COMP/LIMIT)
POWER indicator
Hi-Z indicators
48V indicators
COMP/LIMIT indicatorsCHARACTERISTICSNominal Input LevelINPUT (1L, 2R, 3L, 4R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R, 3L, 4R) jacks (1/4-inch TRS phone type): -44--+4 dBuMaximum Input LevelINPUT (1L, 2R, 3L, 4R) connectors (XLR type): +2 dBu
INPUT (1L, 2R, 3L, 4R) jacks (1/4-inch TRS phone type): +18 dBuNominal Output LevelOUTPUT (1L, 2R, 3L, 4R) jacks: -6 dBu (impedance balanced)Maximum Output LevelOUTPUT (1L, 2R, 3L, 4R) jacks: +8 dBu (impedance balanced)PHONES Maximum Output Power20 mW + 20 mW (L + R, 47 ohms load)Headroom14 dBInput ImpedanceINPUT (1L, 2R, 3L, 4R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R, 3L, 4R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L, 3L) jacks (1/4-inch phone type): 500 k ohms or greater
*3 When the Hi-Z is turned onOutput ImpedanceOUTPUT (1L, 2R, 3L, 4R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohmsResidual Noise LevelINPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)Dynamic RangeAD block INPUT (1L, 2R, 3L, 4R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R, 3L, 4R) jacks: 109 dB typ.
