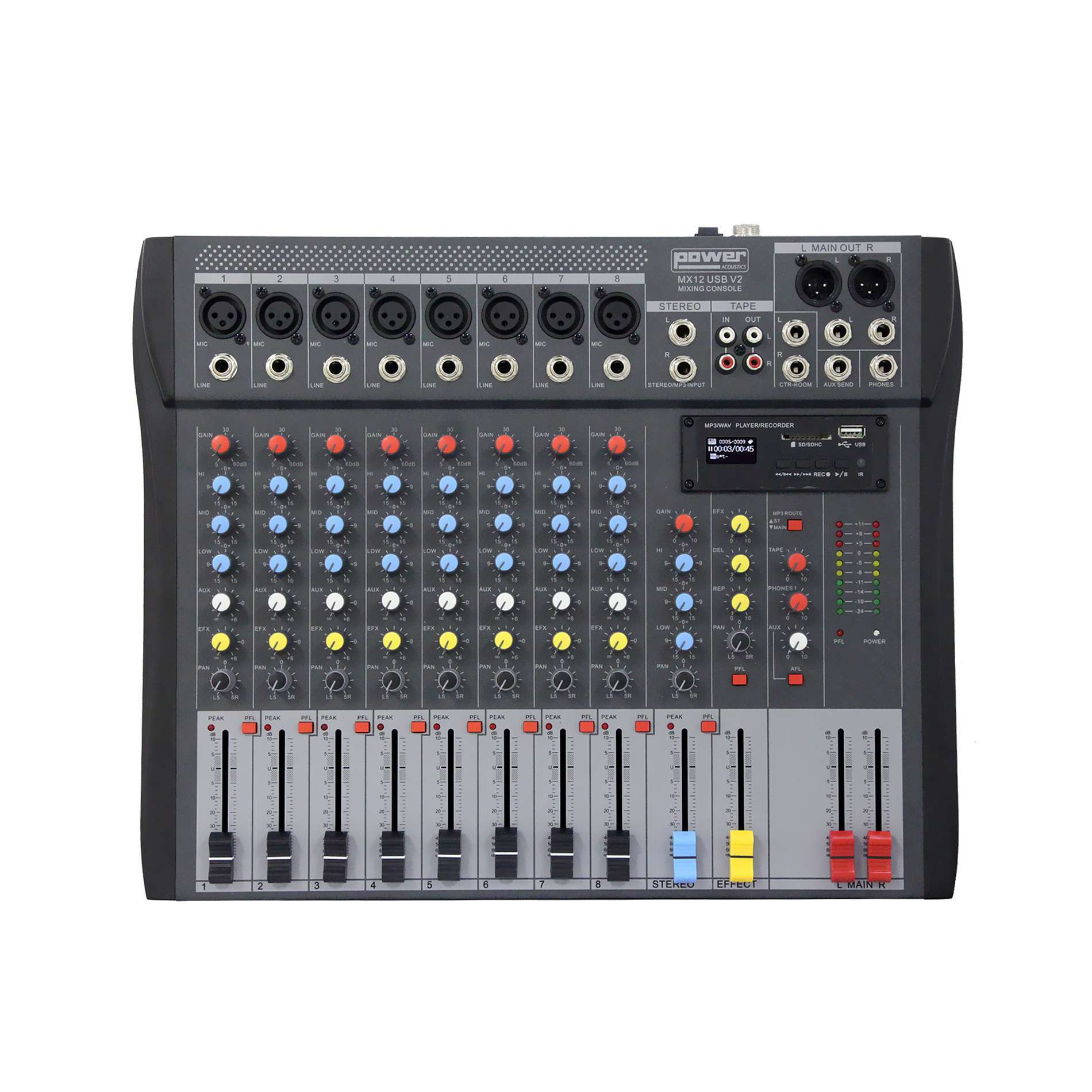

Power Acoustics MX12USBV2 Mesa
Mesa de mistura analógica de 14 canais, 8 entradas XLR / Jack6,35 mm, 2 entradas stereo jack 6.35, Entradas Tape In, saídas auxiliares RCA/Tape + Auxiliar Send Jack + Control Room, 2 saídas master XLR/jack, efeito tipo Echo regulável, leitor/gravador multimédia com USB e SD, equalizador 3 vias por canal, faders de alta precisão. Dimensões 350 x 376 x 74 mm, peso 5kg.
Technical characteristics :
- 8 XLR microphone inputs
- 8 unbalanced 6.35 mm line inputs
- 2 balanced 6.35 mm Jack line inputs
- RCA TAPE inputs/outputs
- XLR x 2 and Jack 6.35mm x 2 outputs
- AUX send
- Control Room
- Very low noise preamp
- Adjustable Echo Type Effect
- Corrections 3 lanes per lane
- Clipping LED
- Linear volume faders per channel
- Led meters
- Headphone jack
- TAPE input and output
- Frequency response: Mic/Line input to any output: +/- 0.5 dB, 20 Hz 20KHz
- T.H.D: Mic Sensitivity -30dBu, +14dBu @ Mix Output <0.007%
- Noise: Mic E.I.N input (maximum gain): -128 dBu (source150?)
- Aux, Mix and Master (@0dB, fade) < -85dBu
- Channel Cut: >96 dB
- Aux Send Pots Offness: >86 dB
- Input and output impedances: Mic input: 2.4 k?, Line input: 11 k? and Stereo input: 100k?
- Input and output levels: Mic input: +17 dBu max, Line input: +30 dBu max, Stereo input: +30dBu max and Mix output: +20 dBu
- Earphone (@ 200?) 300mW
- EQ (mono/stereo input): HF: 12 KHz +/- 15 dB, MF: 140 Hz - 3 KHz, +/- 15 dB, LF: 80 Hz +/- 15 dB
- Dimensions (H x W x D): 350 x 376 x 74 mm
- Weight: 5.0 Kg
