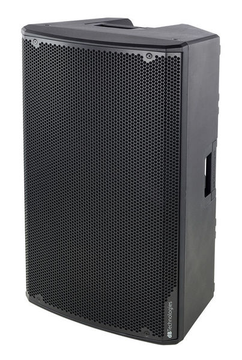

DB Opera 15
Coluna amplificada, altifalante 15”, 600w RMS, 1200w Peak, DSP avançado, 2 canais de input, output seleccionável, 8 Presets de Equalização, pode ser usado como monitor de palco.
Technical Data
Speaker Type2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]50 - 20.000 Hz
Frequency Response [- 3dB]56 - 19.000 Hz
Max SPL130 dB
HF1" Exit, 1.4 v.c.
Type HFCompression driver
Horizontal Directivity 100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
HornAsymmetrical Horn
LF15", 2" v.c.
Amplifier
Amp TechnologyAmp SMPS Power supply dual range
Amp ClassClass D
RMS Power 600 W
Peak Power1200 W
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
System PresetsRotary Encoder (8 Presets)
X-Over Frequency 1800 Hz
LimiterPeak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters
Input
Signal Input 1xCombo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output1x XLR Male (CH1 Link/Mix OUT)
Selectable
Mechanics
HousingPolypropylene with internal frame
Grille Full grille
Handles 1 on left Side, 1 on Top
Rigging Points 2XM10 on Top + 1x M10 on Back
Pole Mount D36 mm
Angles up Monitor use 45°
Width420 mm (16.54 in)
Height722 mm (28.43 in)
Depth419 mm (16.50 in)
Weight18.3 kg (40.34 lbs)
