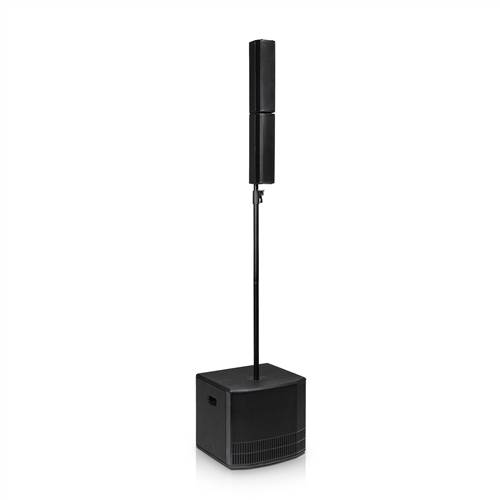

DB ES802
Sistema de som com 1200w peak de amplificação classe D, subgrave de 12”, top com 8x3”, DSP com factory presets.
Acoustical data
Frequency Response [-10dB]37-15.000 Hz
Max SPL124 dB
MF - HF8x 3"
Type MF - HFNeodymium
LF12"
Directivity95x65°
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass-D
Power Amp Peak1200 W
Processor
ControllerDSP 24 Bit/48 kHz
System PresetsFactory presets
LimiterDual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF 206 Hz
Input
Mic/Instrument Channel1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
Link Output1x XLR balanced output
Mechanics
Housing (Subwoofer)15mm Black Painted Birch Plywood
Housing (Tops)Polypropylene PP
Handles2x lateral side (Subwoofer)
Width (Top)95 mm (3.74 in)
Height (Top)360 mm (13.98 in)
Depth (Top)137 mm (5.39 in)
Width (Subwoofer)465 mm (18.3 in)
Height (Subwoofer)400 mm (15.7 in)
Depth (Subwoofer)430 mm (16.9 in)
Weight (Top)1.9Kg – 4.19lbs
Weight (Subwoofer)16.4Kg – 36.16lbs
