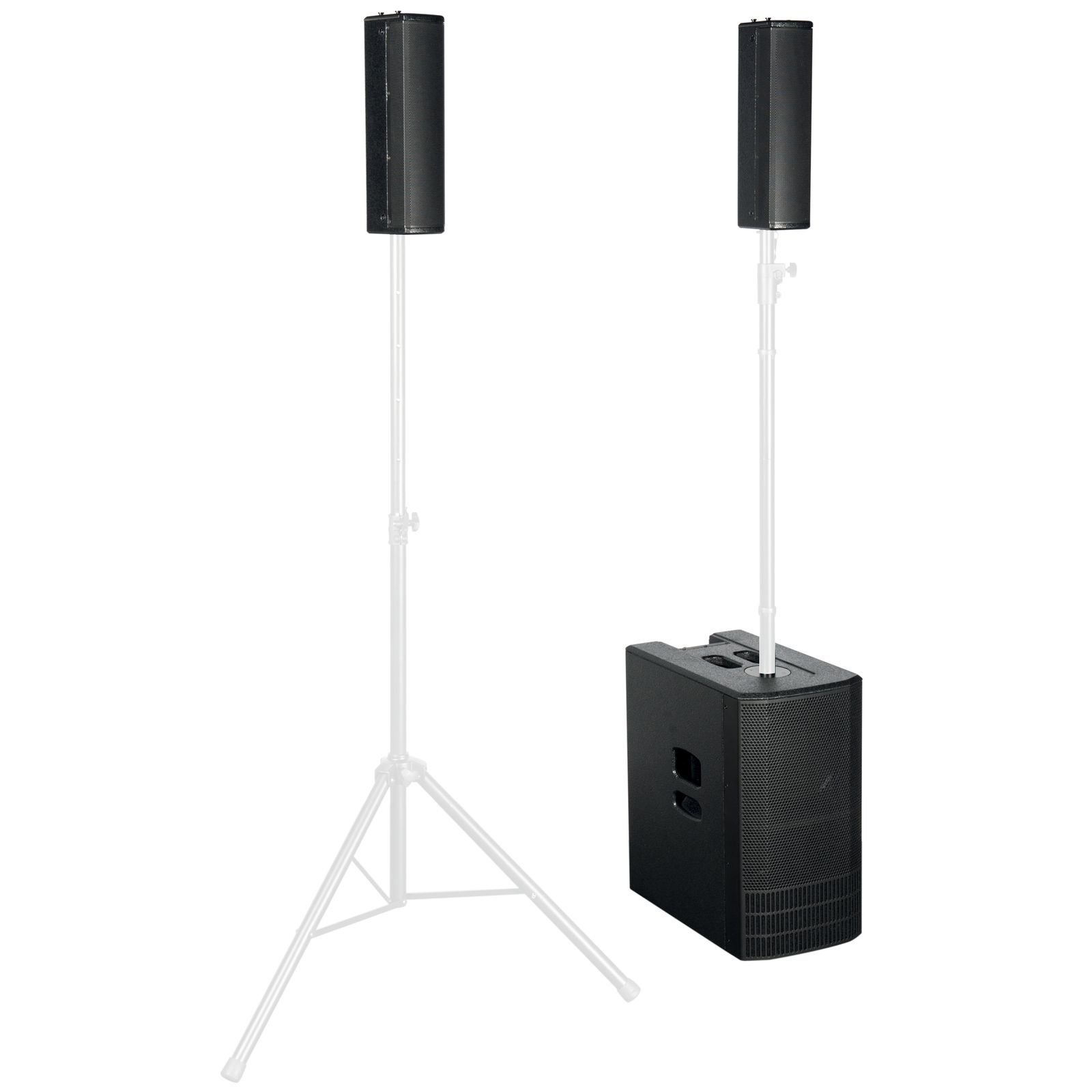

DB ES1203
Sistema de som com 2400w de amplificação classe D, subgrave de 2x12”, top com 8x4”+1”, DSP, 3 Inputs XLR/Jack Combo, Bluetooth.
Technical Data
Speaker Type 3-amped Stereo System with
two full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB]35 - 20.000 Hz
Max SPL132 dB
MF - HF8x4", v.c. 1"
Type MF - HFNeodymium
LF2X12"
Directivity97x60°
Amplifier
Amp TechnologyDigipro® G4
Amp ClassClass-D
Power Amp Peak2400 W
Controls1xOLED Display with rotary encoder w/button
1x Audio signal monitoring LED
1XUSB port (service data)
Power Supply Fullarange with PFC
Power connection VDE Socket
Cooling Convection
Processor
ControllerDSP 56 Bit
Converter AD/DA 24 Bit/48 Hz
LimiterPeak, RMS, Thermal
Crossover Frequency LF-MF160 Hz
Digital Steering Up/Down/Far
Input
Input Channels: 1x Mic/Instrument Combo (XLR/Jack)
2xMic/Line Combo (XLR/Jack)
1XBluetooth built-in receiver
Mix Output1x XLR balanced output
Mechanics
Housing (Subwoofer)Plywood with full metal grille
Housing (Tops)Plywood with full metal grille
Pole Mount 36 mm (M20 Thread)
Handles (subwoofer)1xtop
1x lateral side
Width (Top)110 mm (4.33 in)
Height (Top)460 mm (18.11in)
Depth (Top)160 mm (6.30 in)
Width (Subwoofer)360 mm (14.17 in)
Height (Subwoofer)680 mm (26.77 in)
Depth (Subwoofer)545 mm (21.46 in)
Weight (Top)3.3 Kg – 7.27 lbs.
Weight (Subwoofer)29.3 Kg – 64.59 lbs.
